Default My 1941 Dodge Truck Build

Yes, it's finally my turn to get a build thread!

I bought a 1941 Dodge truck a few months ago.

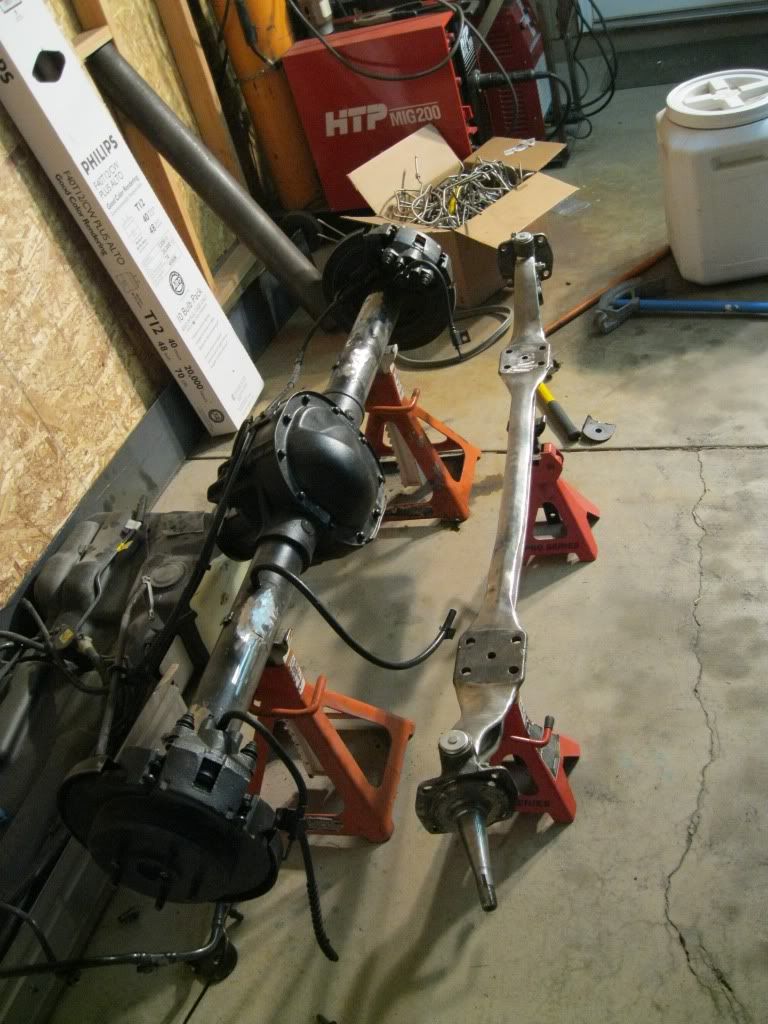

I tore it down and only used the cab and title. I also started collecting parts, which include the power train, front axle, brakes, suspension, etc....

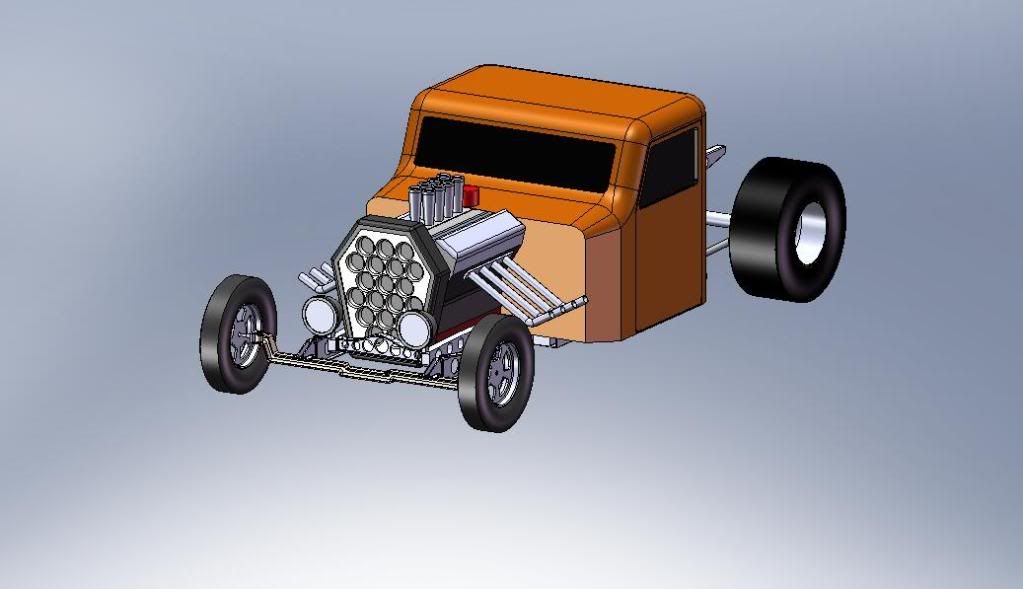

I started designing the truck in Solidworks. I came up with something like this:

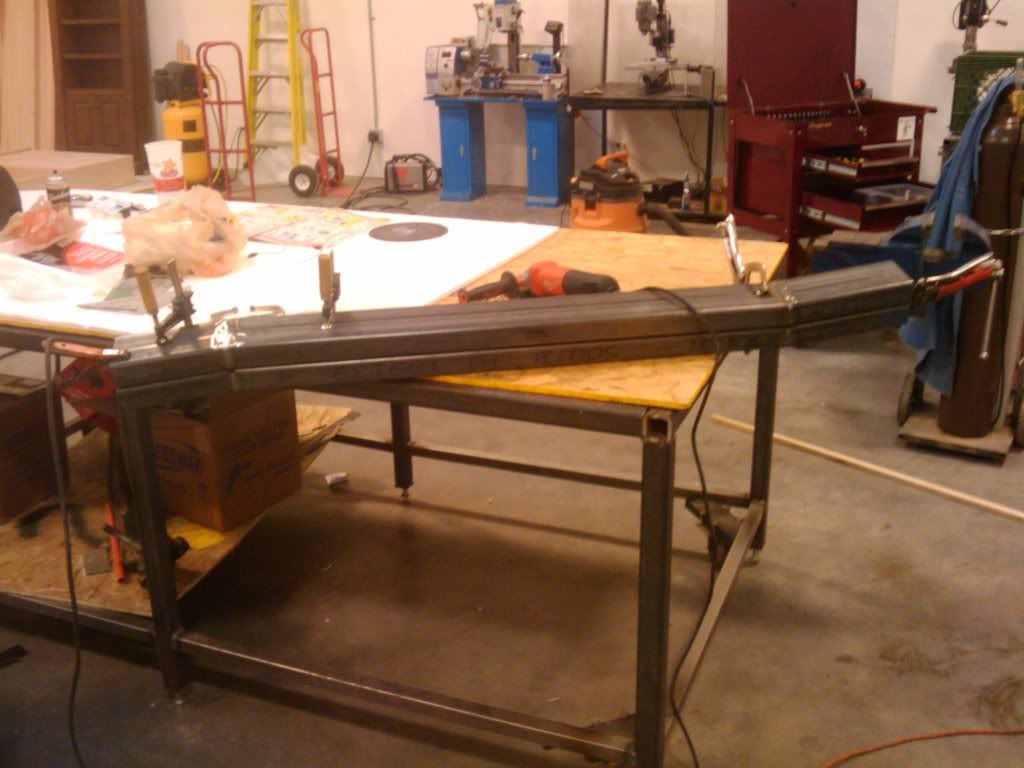

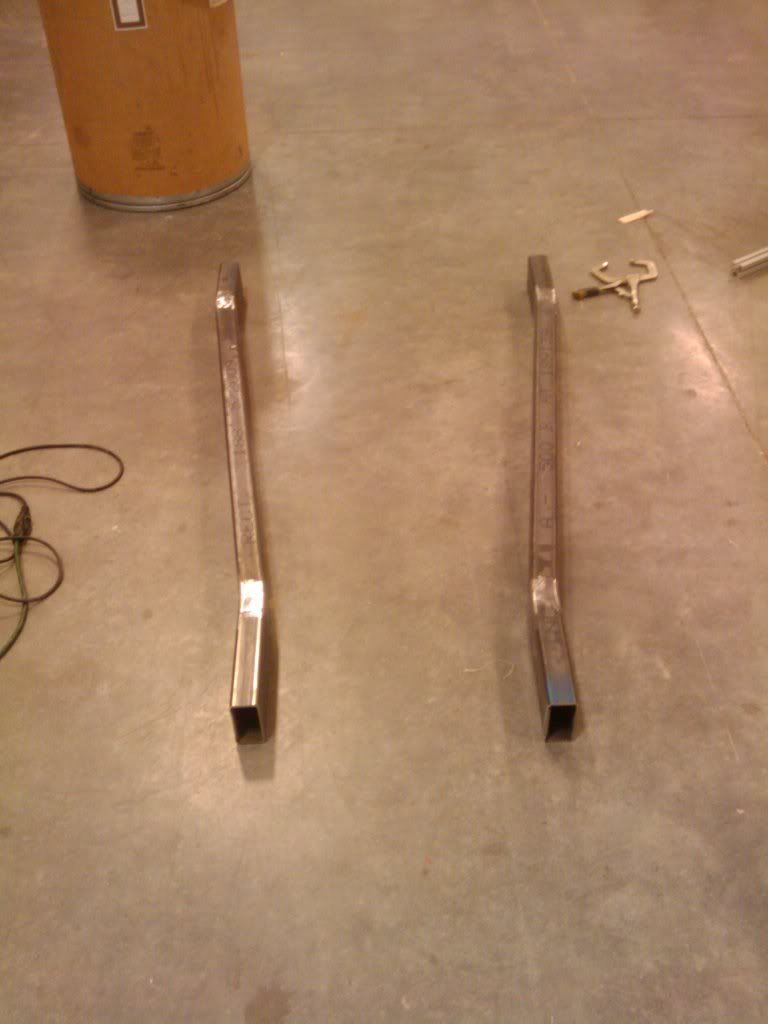

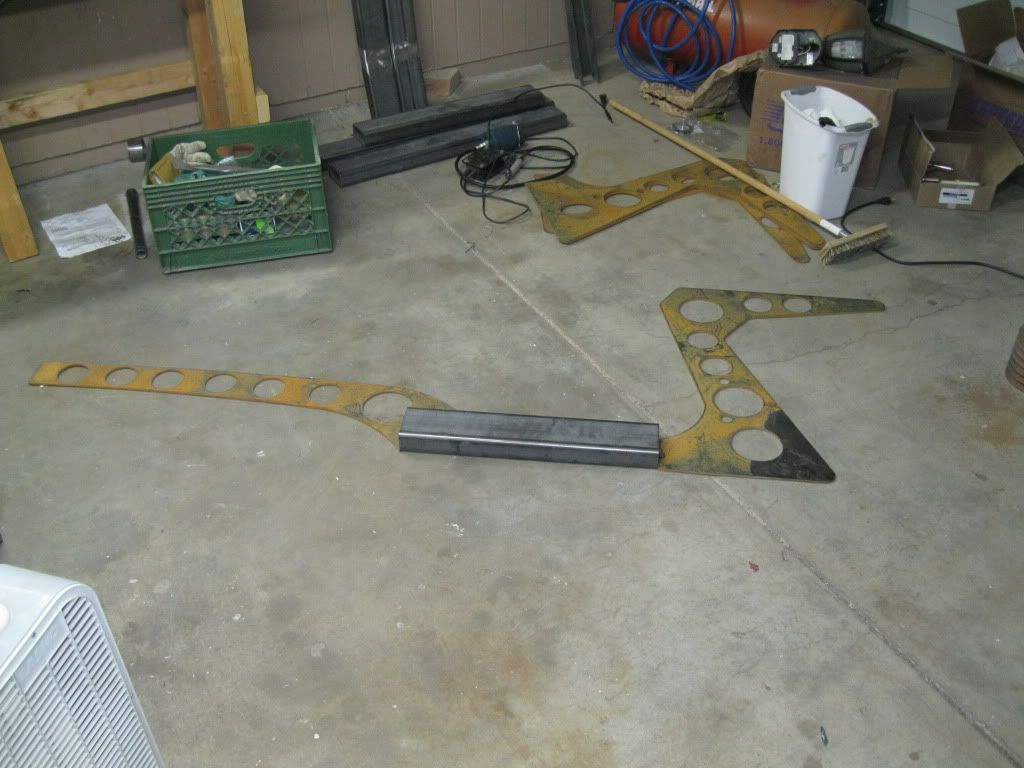

The exposed parts of the frame are water jetted, and the part on which the cab sits is just regular 2x4 tubing. I sent the CAD filed to the water jetter and began fabricating the 2x4 section of the frame.



__________________
I SOLD MY SOUL
FOR ROCK 'N' ROLL


1941 Dodge Truck - Project
Reply With Quote
  #2
Old 05-06-2010, 12:24 AM
Motorhead's Avatar
Motorhead Motorhead is offline
Rusty Rat Rodder

Join Date: Feb 2008
Location: Tempe, AZ
Posts: 442
Default

In the mean while, I picked up another Caddy engine. It's a 1970 Cadillac 500 with the transmission that I picked up for $150. It'll need some refreshing, but it was cheaper than even a core.

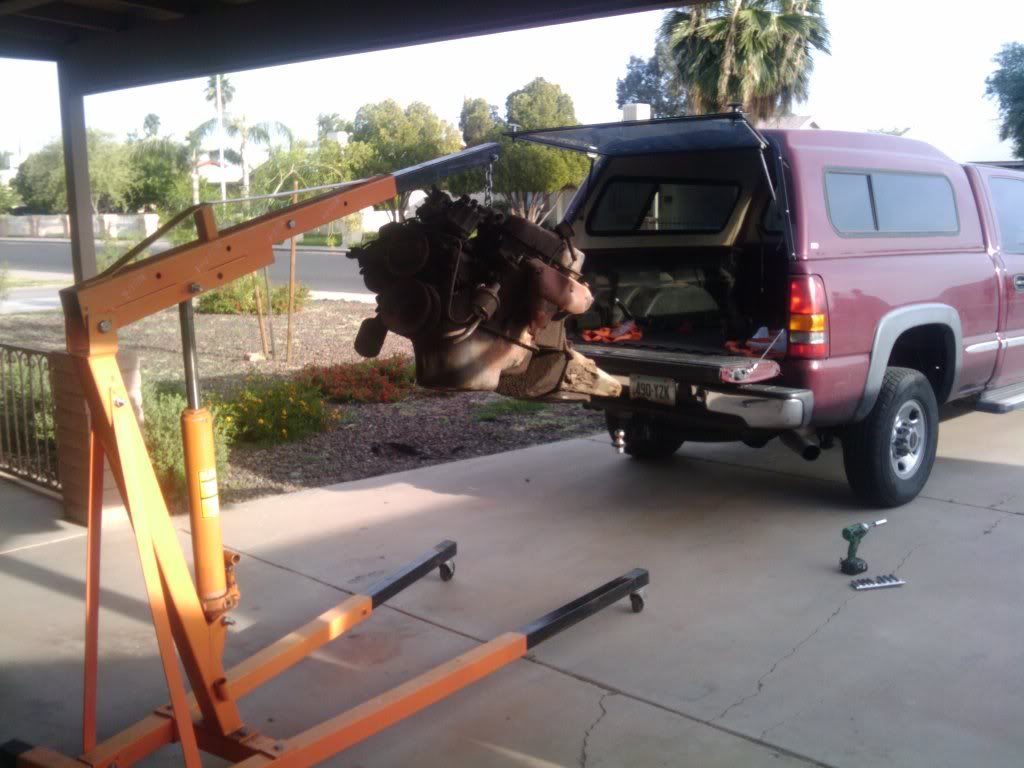

The engine made my cherry picker cry:


My other engine in the back ground. It's a 1973 Cadillac 500 that I got in trade for a few hours of aluminum welding.

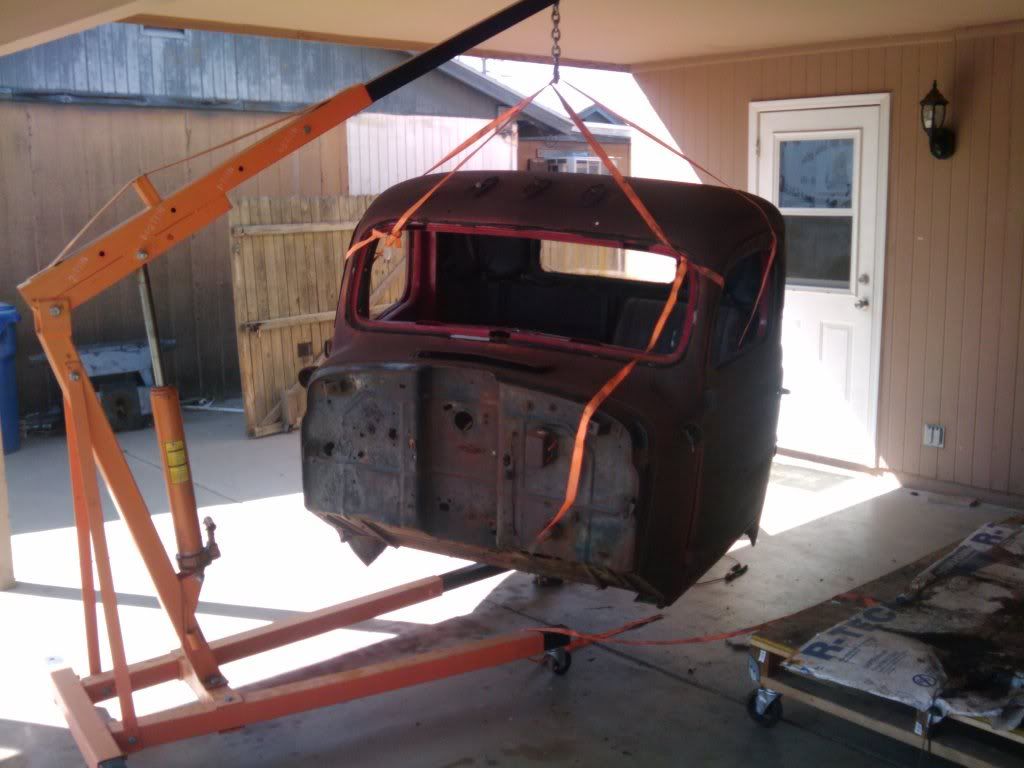

I also moved the cab around, for fun, LOL.
__________________
I SOLD MY SOUL
FOR ROCK 'N' ROLL


1941 Dodge Truck - Project
Reply With Quote
  #3
Old 05-06-2010, 12:24 AM
Motorhead's Avatar
Motorhead Motorhead is offline
Rusty Rat Rodder

Join Date: Feb 2008
Location: Tempe, AZ
Posts: 442
Default

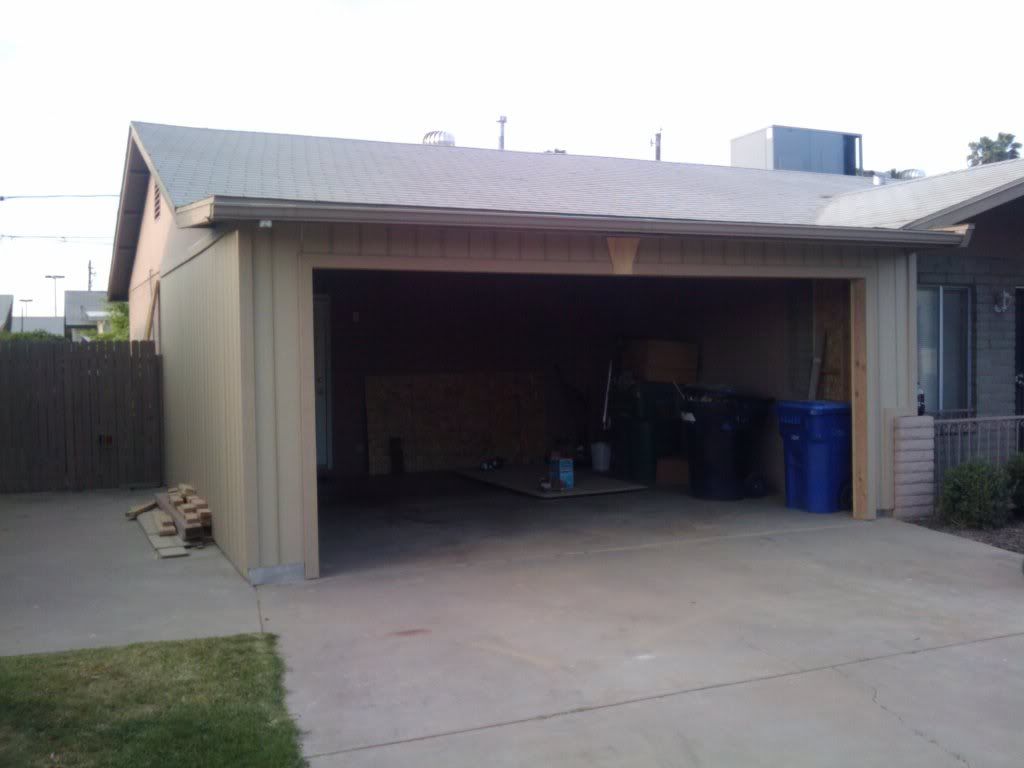

I got the parts from the water jetter a few weeks ago, but it got so hot that I had to do something to improve my working conditions. My house didn't have a garage. It only had a carport, so I decided to buy some lumber and build a garage.

Picked up some lumber:


I bought some 20 footer 2x6's and brought them home like this:

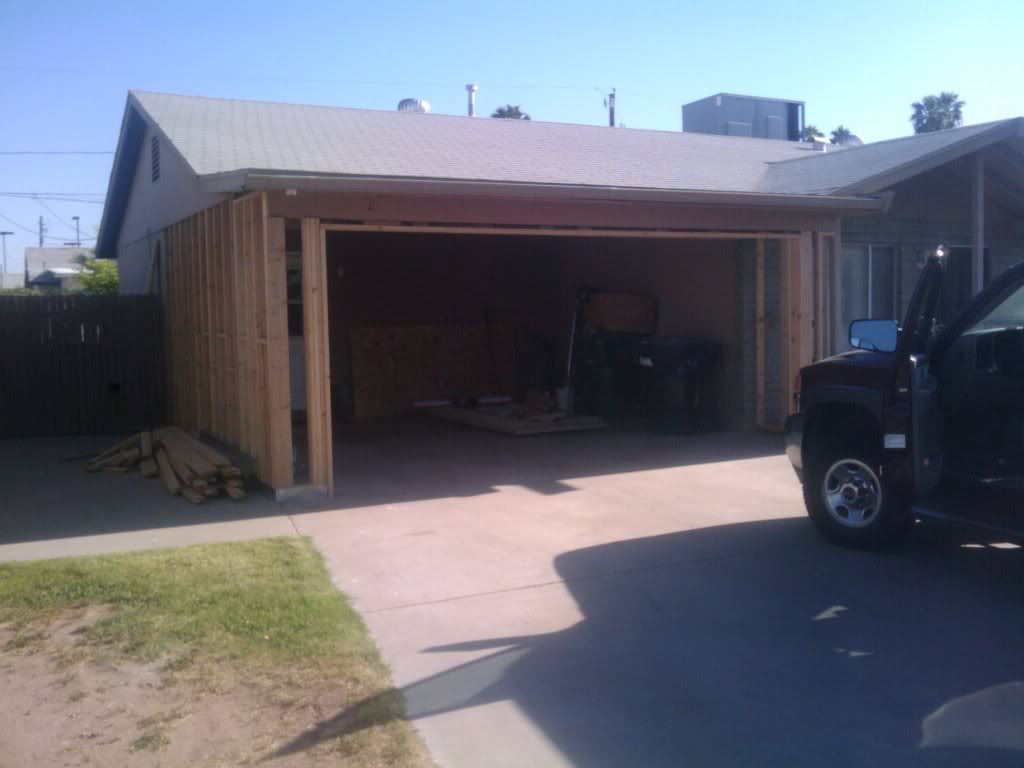

Framed the carport:
__________________
I SOLD MY SOUL
FOR ROCK 'N' ROLL


1941 Dodge Truck - Project
Reply With Quote
  #4
Old 05-06-2010, 12:25 AM
Motorhead's Avatar
Motorhead Motorhead is offline
Rusty Rat Rodder

Join Date: Feb 2008
Location: Tempe, AZ
Posts: 442
Default



Added some siding sheets:


Finally brought all my tools in that were in the back yard, lol.


No "hot rod" garage is complete without a reference to The World's Fastest Indian:

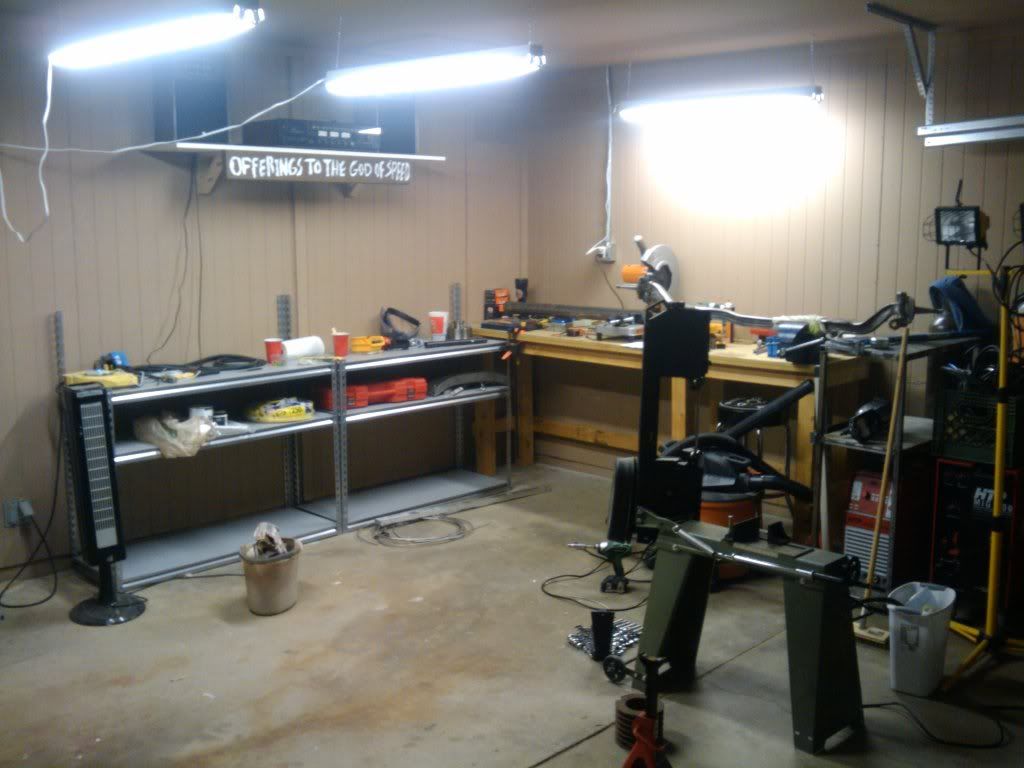

I set up my work space and stereo. It is very important to listen to your favorite tunes when you're working on your rod.
__________________
I SOLD MY SOUL
FOR ROCK 'N' ROLL


1941 Dodge Truck - Project
Reply With Quote
  #5
Old 05-06-2010, 12:25 AM
Motorhead's Avatar
Motorhead Motorhead is offline
Rusty Rat Rodder

Join Date: Feb 2008
Location: Tempe, AZ
Posts: 442
Default

I rebuilt my front king pins:


Then I cut all the brackets from the rear axle (31 spline Ford 8.8") to get it ready for 4-link:


You can kind of see how the frame will end up looking like:

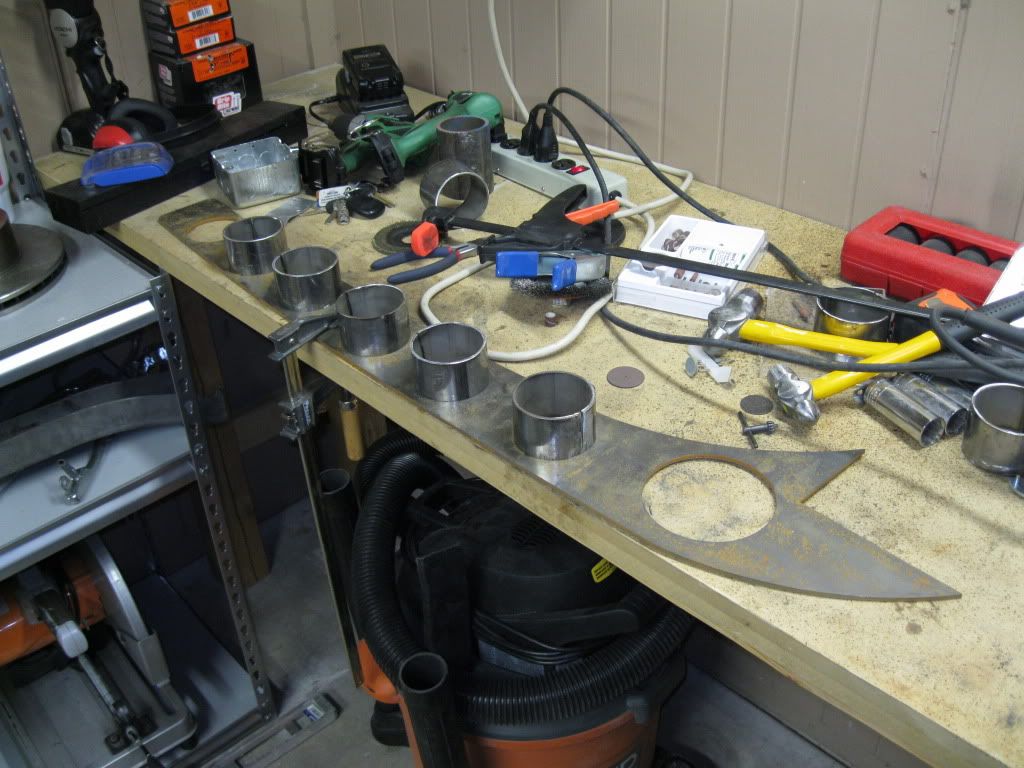

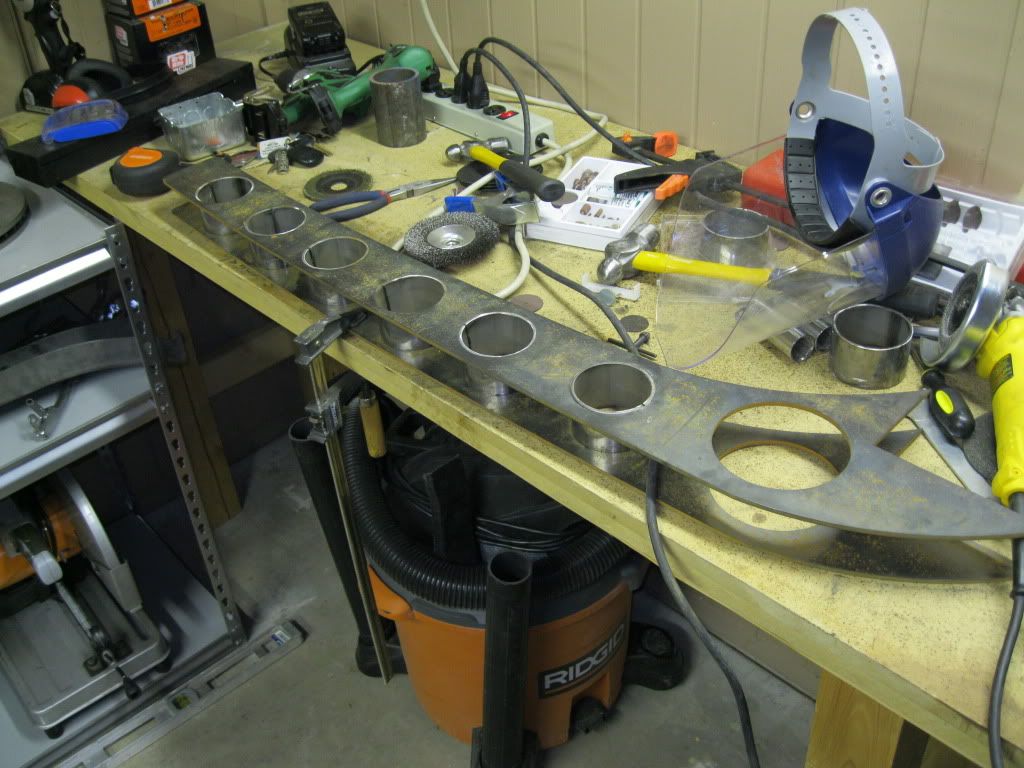

I cut up some tubing for the "lightening holes":


I also had time to mock up the front frame rails tonight:


That's all I have for now. I think I'll be able to make pretty good progress now that I have a decent work space. My goal is to finish it before the Good Guys Fall Nationals, which is a week before Thanksgiving. I hope I can make it!
